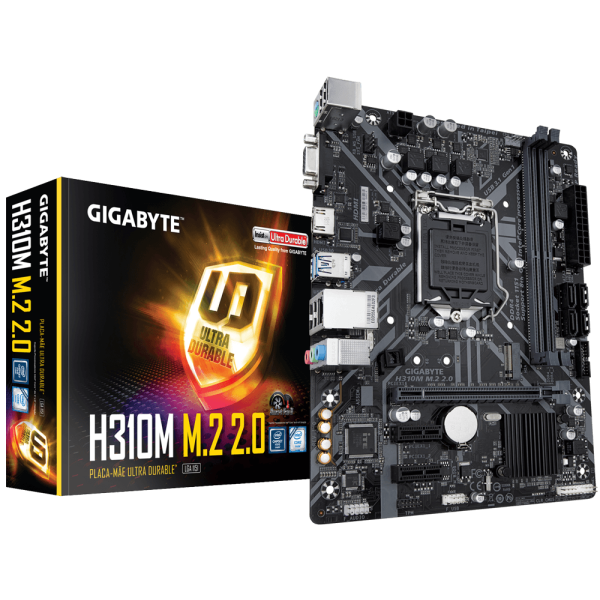

Mainboard Gigabyte H310M M.2 2.0 (Intel LGA 1151, mATX, 2 khe DDR4)

Thông số sản phẩm

Chipset: Intel H310
Socket: LGA 1151
Bộ nhớ hỗ trợ: 2x khe cắm DIMM DDR4
Khe mở rộng: PCIe NVMe M.2 2280
Cổng kết nối: VGA, HDMI

Mainboard Gigabyte H310M M.2 2.0 (Intel LGA 1151, mATX, 2 khe DDR4)

Name: Mainboard Gigabyte H310M M.2 2.0 (Intel LGA 1151, mATX, 2 khe DDR4)
Brand: GIGABYTE
SKU: H310MM20
Price: 1460000.0 VND
Availability: InStock
Rating: 5 (1 reviews)

Mã: H310MM20

(1)

Đã bán: 0

Bình luận: 0

Bảo hành: 36 Tháng

Tình trạng: Liên hệ

1.460.000^đ ^đ (Tiết kiệm -1.460.000)^đ

Tạm hết hàng Vui lòng liên hệ trực tiếp

Liên hệ

Hotline: 088.677.6286 Email: contact@it24h.vn

Chính sách bán hàng

Uy tín 10 năm xây dựng và phát triển
Sản phẩm chính hãng 100%
Trả góp lãi suất 0% toàn bộ giỏ hàng
Trả bảo hành tận nơi sử dụng
Bảo hành tận nơi cho doanh nghiệp
Vệ sinh miễn phí trọn đời PC, Laptop
Miễn phí quẹt thẻ

Thông số kỹ thuật

Thông số chung	Điều khiển I/O : iTE® I/O Controller Chip BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Đồ họa bộ xử lý	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB
Ram hỗ trợ	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. (Please refer "Memory Support List" for more information.)
Kiểu Sockets Supported	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel® H310 Express Chipset
khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
LAN - WiF	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Cổng I / O phía sau	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Kích thước	Micro ATX Form Factor; 22.6cm x 17.4cm
