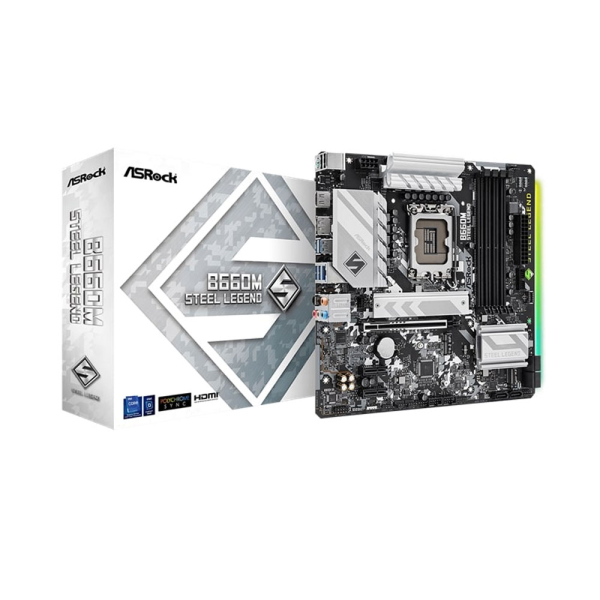

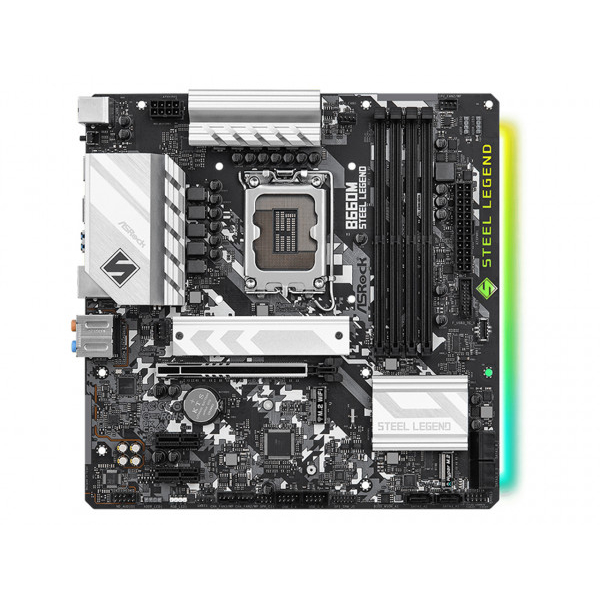

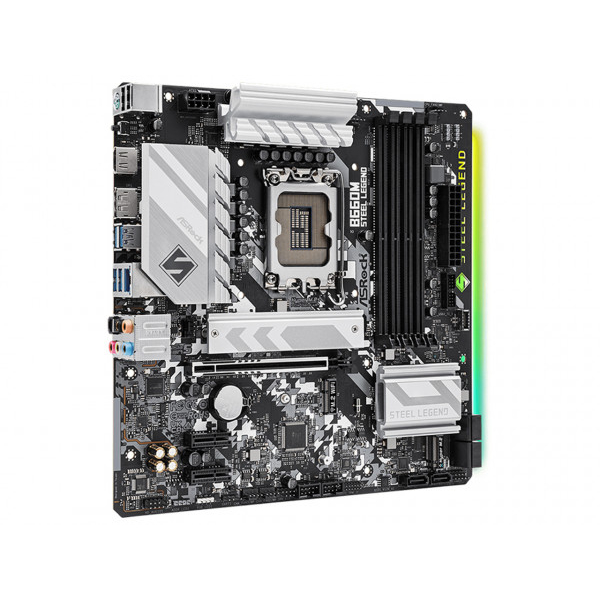

Mainboard ASRock B660M Steel Legend (Intel LGA 1700, mATX, 4 khe DDR4)

Name: Mainboard ASRock B660M Steel Legend (Intel LGA 1700, mATX, 4 khe DDR4)
Brand: ASROCK
SKU: S1YKVIDT
Price: 3450000.0 VND
Availability: InStock
Rating: 5 (1 reviews)

Mã: S1YKVIDT

(1)

Đã bán: 0

Bình luận: 0

Bảo hành: 36 tháng

Tình trạng: Liên hệ

3.450.000^đ ^đ (Tiết kiệm -3.450.000)^đ

Tạm hết hàng Vui lòng liên hệ trực tiếp

Liên hệ

Hotline: 088.677.6286 Email: contact@it24h.vn

Chính sách bán hàng

Uy tín 10 năm xây dựng và phát triển
Sản phẩm chính hãng 100%
Trả góp lãi suất 0% toàn bộ giỏ hàng
Trả bảo hành tận nơi sử dụng
Bảo hành tận nơi cho doanh nghiệp
Vệ sinh miễn phí trọn đời PC, Laptop
Miễn phí quẹt thẻ

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	B660M Steel Legend DDR4
CPU hỗ trợ	Intel
Chipset	B660
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel^® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
Khe cắm mở rộng	- 1 x PCIe Gen5x16 Slot* - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Ổ cứng hỗ trợ	- 4 x SATA3 6.0 Gb/s Connectors* - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061 - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4 x4 (64 Gb/s) mode
Cổng kết nối (Internal)	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

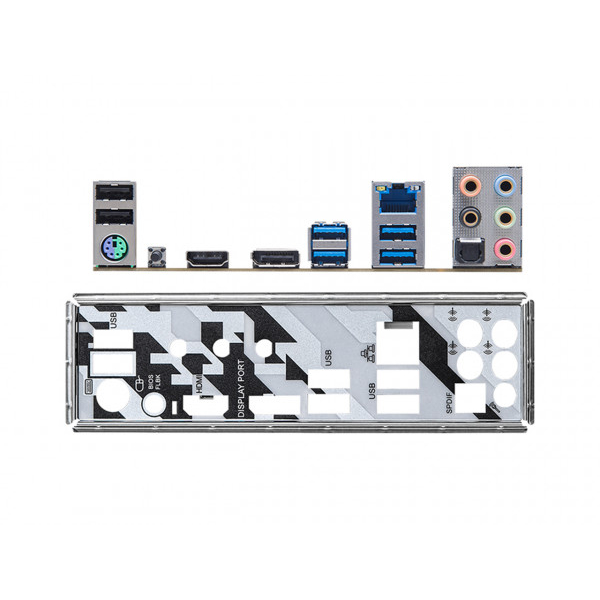

Cổng kết nối (Back Panel)	- 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
LAN / Wireless	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Kích cỡ	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
