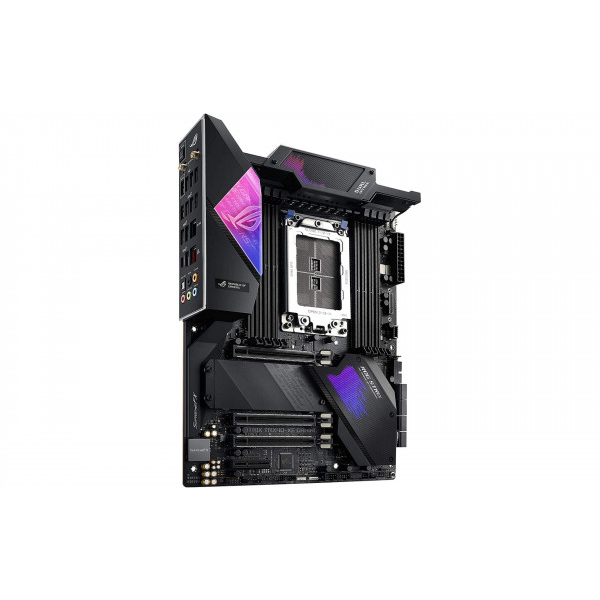

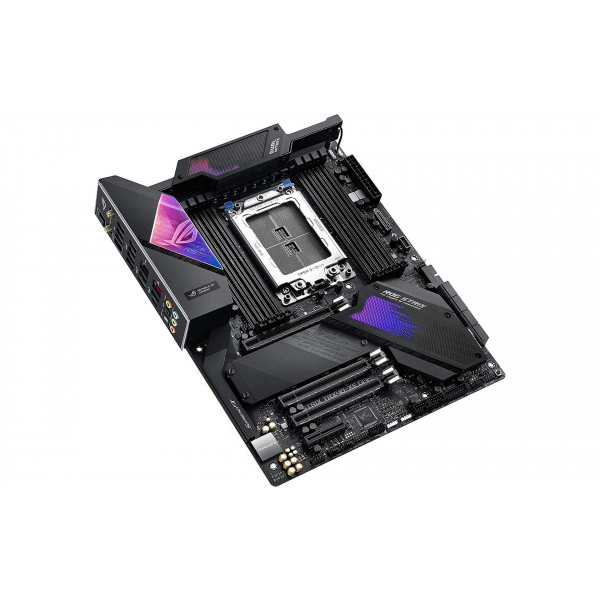

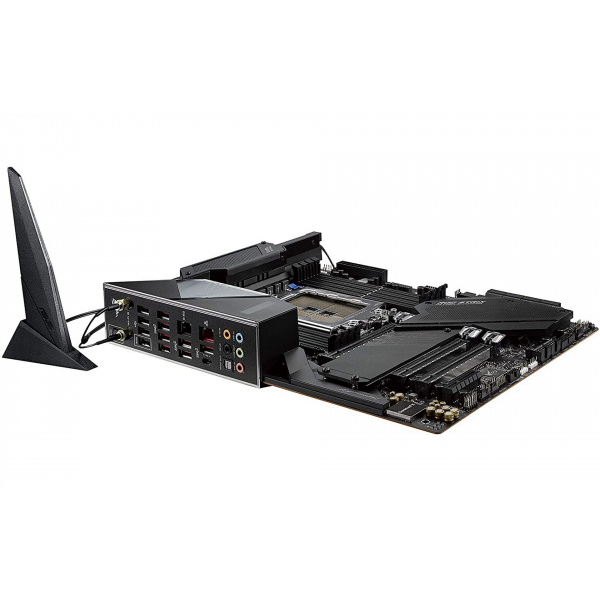

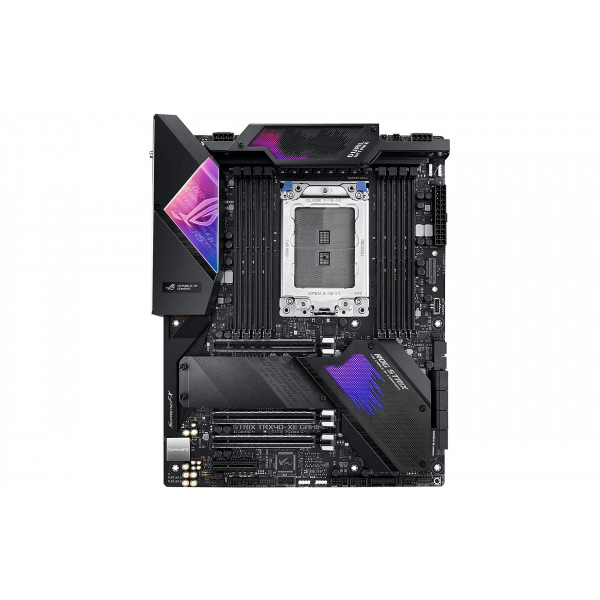

Mainboard ASUS ROG STRIX TRX40‑XE GAMING (AMD TRX40, ATX, 4 khe DDR4)

Thông số sản phẩm

Socket: sTRX4 hỗ trợ các CPU AMD Ryzen Threadripper thế hệ thứ 3
Kích thước: ATX
Khe cắm RAM: 8 khe (Tối đa 256GB)
Khe cắm mở rộng: 3 x PCIe 4.0 x16 (x16/x16/x16), 1 x PCIe 4.0 x4
Khe cắm ổ cứng: M.2 connector, 8 x SATA 6Gb/s

Mainboard ASUS ROG STRIX TRX40‑XE GAMING (AMD TRX40, ATX, 4 khe DDR4)

Name: Mainboard ASUS ROG STRIX TRX40‑XE GAMING (AMD TRX40, ATX, 4 khe DDR4)
Brand: ASUS
SKU: KW5TFWUO
Price: 15890000.0 VND
Availability: InStock
Rating: 5 (1 reviews)

Mã: KW5TFWUO

(1)

Đã bán: 0

Bình luận: 0

Bảo hành: 36 tháng

Tình trạng: Liên hệ

15.890.000^đ ^đ (Tiết kiệm -15.890.000)^đ

Tạm hết hàng Vui lòng liên hệ trực tiếp

Liên hệ

Hotline: 088.677.6286 Email: contact@it24h.vn

Chính sách bán hàng

Uy tín 10 năm xây dựng và phát triển
Sản phẩm chính hãng 100%
Trả góp lãi suất 0% toàn bộ giỏ hàng
Trả bảo hành tận nơi sử dụng
Bảo hành tận nơi cho doanh nghiệp
Vệ sinh miễn phí trọn đời PC, Laptop
Miễn phí quẹt thẻ

Thông số kỹ thuật

CPU	Supports CPU up to 64 cores Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
Chipset	AMD TRX40
Memory	8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.) /4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.) /3466(O.C.)/3400(O.C.)/3200/2800/2666/2400 /2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture
Expansion Slots	3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 x4
Storage	2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : AMD TRX40 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Ethernet	Realtek® RTL8125-CG 2.5G LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst V Technology
Wireless & Bluetooth	Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports 2x2 MU-MIMO Intel® Wi-Fi 6 AX200

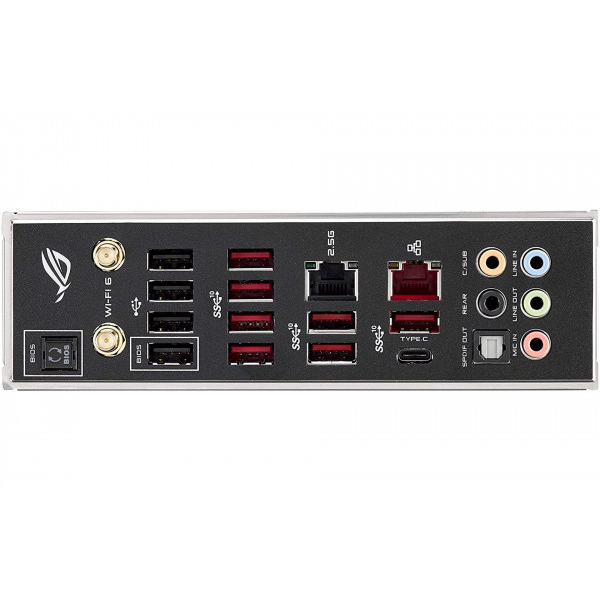

USB	4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C) 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : ASMedia® USB 3.2 Gen 1 controller : 8 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
Audio	- High quality120dBSNR stereo playback output108dBSNR recording input - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Dual OP Amplifiers - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III
Intrernal I/O Connectors	2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x Chipset Fan Header 1 x VRM_HS_FAN Header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x Speaker connector
Special Features	- USB BIOS FlashBack™ - BIOS FlashBack™ Button LiveDash OLED 1.3” - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. 5-Way Optimization by Dual Intelligent Processors 5 Gamer´s Guardian: - DRAM Overcurrent Protection - Highly Durable components - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Pre-mounted I/O Shield - ASUS NODE: hardware control interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Accessories	1 x Thermal sensor cable pack(s) 1 x pack of cable tie User manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Strix door hanger 1 x ROG Strix stickers 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
