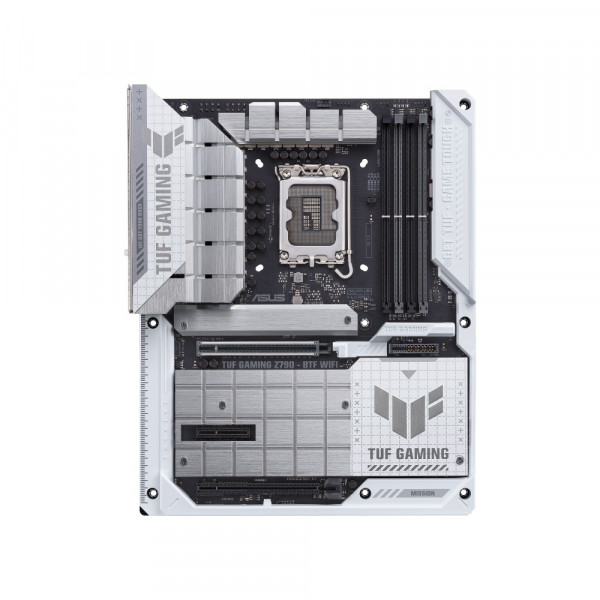

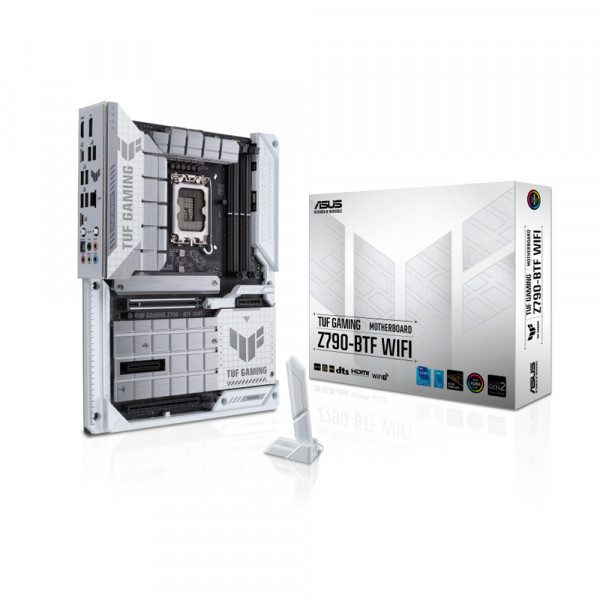

Mainboard ASUS TUF GAMING Z790 BTF WIFI (Intel LGA 1700, ATX, 4 khe DDR5)

Thông số sản phẩm

Socket: Intel Socket LGA1700 hỗ trợ CPU intel Core™ 14th, 13th & 12th Gen
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 192GB)
Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot
Khe cắm ổ cứng: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Mainboard ASUS TUF GAMING Z790 BTF WIFI (Intel LGA 1700, ATX, 4 khe DDR5)

Name: Mainboard ASUS TUF GAMING Z790 BTF WIFI (Intel LGA 1700, ATX, 4 khe DDR5)
Brand: ASUS
SKU: QA3OM5PS
Price: 7900000.0 VND
Availability: InStock
Rating: 5 (1 reviews)

Mã: QA3OM5PS

(1)

Đã bán: 0

Bình luận: 0

Bảo hành: 36 tháng

Tình trạng: Liên hệ

7.900.000^đ ^đ (Tiết kiệm -7.900.000)^đ

Tạm hết hàng Vui lòng liên hệ trực tiếp

Liên hệ

Hotline: 088.677.6286 Email: contact@it24h.vn

Chính sách bán hàng

Uy tín 10 năm xây dựng và phát triển
Sản phẩm chính hãng 100%
Trả góp lãi suất 0% toàn bộ giỏ hàng
Trả bảo hành tận nơi sử dụng
Bảo hành tận nơi cho doanh nghiệp
Vệ sinh miễn phí trọn đời PC, Laptop
Miễn phí quẹt thẻ

Thông số kỹ thuật

Tên Hãng	Asus
Model	TUF GAMING Z790-BTF WIFI
CPU hỗ trợ	Intel
Chipset	Intel Z790 Chipset
RAM hỗ trợ	4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/ 6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000 4800 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot
Ổ cứng hỗ trợ	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x Graphics Card High-Power slot 1 x 12V-2X6 Auxiliary Power connector 3 x 8-pin PCIe Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header

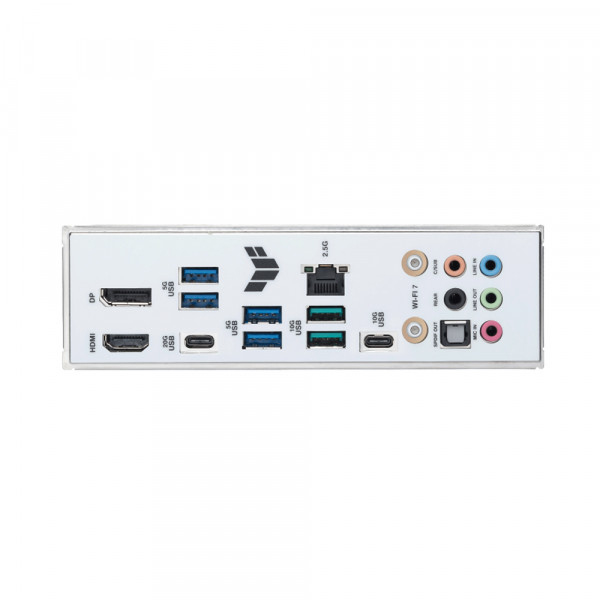

Cổng kết nối (Back Panel)	1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
LAN / Wireless	1 x Intel® 2.5Gb Ethernet TUF LANGuard Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
