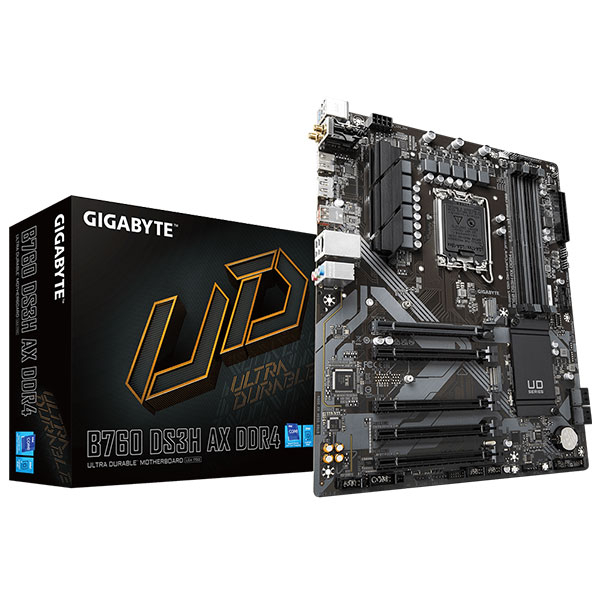

Mainboard Gigabyte B760 DS3H AX DDR4 (Intel LGA 1700, ATX, 4 khe DDR4)

Thông số sản phẩm

Chipset: Intel B760
Socket: Intel LGA 1700
Kích thước Main: ATX
Hỗ trợ CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM: 4 khe ram
Loại RAM: DDR4

Mainboard Gigabyte B760 DS3H AX DDR4 (Intel LGA 1700, ATX, 4 khe DDR4)

Name: Mainboard Gigabyte B760 DS3H AX DDR4 (Intel LGA 1700, ATX, 4 khe DDR4)
Brand: GIGABYTE
SKU: Y0OQW6YM
Price: 3390000.0 VND
Availability: InStock
Rating: 5 (1 reviews)

Mã: Y0OQW6YM

(1)

Đã bán: 0

Bình luận: 0

Bảo hành: 36 tháng

Tình trạng: Liên hệ

3.390.000^đ ^đ (Tiết kiệm -3.390.000)^đ

Tạm hết hàng Vui lòng liên hệ trực tiếp

Liên hệ

Hotline: 088.677.6286 Email: contact@it24h.vn

Chính sách bán hàng

Uy tín 10 năm xây dựng và phát triển
Sản phẩm chính hãng 100%
Trả góp lãi suất 0% toàn bộ giỏ hàng
Trả bảo hành tận nơi sử dụng
Bảo hành tận nơi cho doanh nghiệp
Vệ sinh miễn phí trọn đời PC, Laptop
Miễn phí quẹt thẻ

Thông số kỹ thuật

Chipset	Intel B760
Socket	Intel LGA 1700
Kích thước Main	ATX
Hỗ trợ CPU	LGA1700 socket Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	4 khe ram
Loại RAM	DDR4
Bus RAM hỗ trợ	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture
Card đồ họa	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Kết nối mạng	1Gb Ethernet
Thông số (Lan/Wireless)	AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands LUETOOTH 5.2 Support for 11ax 80MHz wireless standard Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX211 (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Realtek®
Khe cắm trong	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Khe cắm mở rộng	CPU 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng giao tiếp ngoài	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Âm thanh	Realtek® ALC1220-VB CODEC

Bạn đánh giá sao về sản phẩm này

5/5

1 đánh giá và nhận xét

1 đánh giá

0 đánh giá

Để lại nhận xét và đánh giá của bạn

Hỏi và đáp

Thông số kỹ thuật

Chipset	Intel B760
Socket	Intel LGA 1700
Kích thước Main	ATX
Hỗ trợ CPU	LGA1700 socket Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	4 khe ram
Loại RAM	DDR4
Bus RAM hỗ trợ	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture
Card đồ họa	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Kết nối mạng	1Gb Ethernet
Thông số (Lan/Wireless)	AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands LUETOOTH 5.2 Support for 11ax 80MHz wireless standard Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX211 (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Realtek®
Khe cắm trong	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Khe cắm mở rộng	CPU 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng giao tiếp ngoài	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Âm thanh	Realtek® ALC1220-VB CODEC
