Sản phẩm

Tên Hãng

Gigabyte

Model

H510M K V2

CPU hỗ trợ

Chipset

Intel® H470

RAM hỗ trợ

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2. 2 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 2 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x serial port header
13. 1 x Clear CMOS jumper

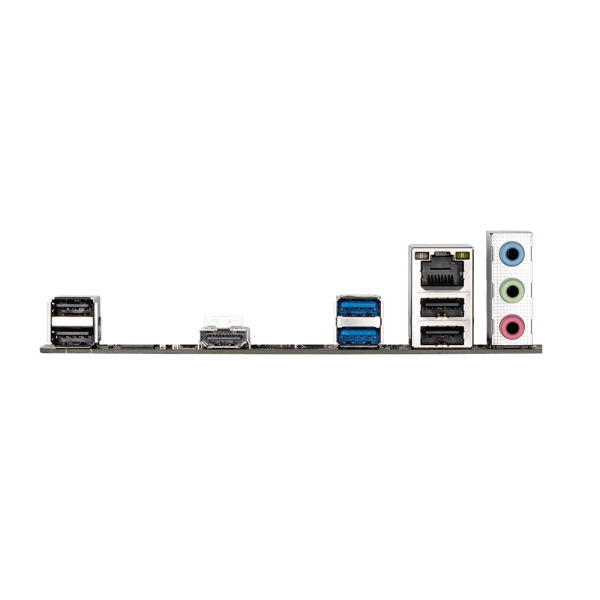

USB

1. 1 x HDMI port
2. 2 x USB 3.2 Gen 1 ports
3. 4 x USB 2.0/1.1 ports
4. 1 x RJ-45 port
5. 3 x audio jacks

LAN / Wireless

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Kích cỡ

1. Micro ATX Form Factor; 22.6cm x 18.5cm
